Description
HYBRID INVERTER SOLAR KIT
8.5KVA 120A MPPT PURE SINE WAVE SOLAR COMBO 5.42 KWH LITHIUM BATTERY BATTERY
Overcome load shedding and run off grid with this premium hybrid inverter Combo
Hybrid Inverter Specifications:
Hybrid Inverter 48V 8.5 KVA / 6500 W 120 A MPT Fivestar Inverter Hybrid Inverter
Rated Power : 8500VA/6500W
DC Input : 48DC
AC OUTOUT :230VAC ,50/60Hz, 26.1A
Max 80A, Default 30A
AC Output : 230vac ,50/60hz, 26.1A
Rated Power: 6500w
Max Charge Current : 120A
Nominal Operating Voltage :240VDC
Max. Solar Voltage :(VOC) : 500VDC
MPPT Voltage Range : 120-450VDC
What’s in the box
1 x Inverter
1 x User Manual
1 x Communication Cable
WIFI MODULE OPTIONAL R999 For WIFI Dongle

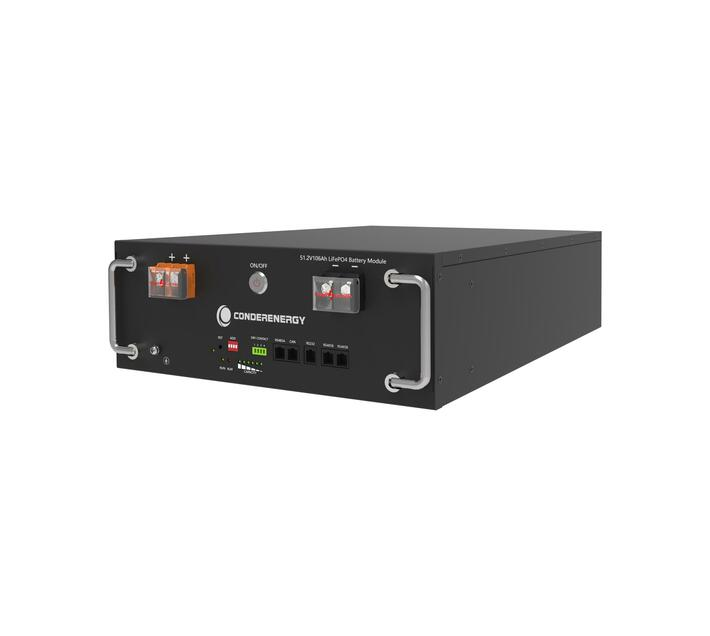

Battery Specifications:
The SVOLT CONDERENERGY 51.2V 106Ah A-Grade Lithium Battery is widely used in industrial, residential, commercial, and private applications. The maintenance-free construction and advanced design features make the Lithium Battery the definitive choice for a wide variety of markets – Like solar and renewable energy storage for electric vehicles, industrial equipment, medical equipment, telecommunications, TVs, and UPS systems.
Features:
- A-Grade Cell Technology
- Maintenance-free
- Environmental Friendly
- Wide Variety of Markets
- Renewable Energy
- 7 Protection Features
- Built-in Battery Management System
- Mountable
Battery Specifications:
- Battery Type-Chemistry: LiFePO4
- Nominal Voltage: 51.2V
- Nominal Capacity: 106Ah
- Energy Density: 5427.2Wh
- Terminal Type: M6
- Terminal Torque: 8.5NM
- Case Material: Metal
- BMS Built-in: Yes
- Internal Resistance: <30mΩ
- Efficiency – Round Trip: >99.5%
- Self Discharge per Month: <3%
- Max Parallel Connectors: 16Pcs
- Series Connections: Not Allowed
- Cycle Life(0.2°C, 25°C @ 80% DOD): >4000 Cycles
- Discharge Temperature: -20°C to 65°C
- Charge Temperature: 0°C to 45°C
- Storage Temperature: -10°C to 30°C
- Voltage Window: 44.8 – 57.6V
- Recommended Charge Voltage: 57.6 ±0.20V
- Max Charge Voltage: 58.4 ±0.20V
- Recommended Charge Current: 50A
- Max Continuous Charge Current: 100A
- Recommended Discharge Voltage: 44.8 ±0.20V
- Max Discharging Voltage: 43.2 ±0.20V
- Max Continuous Discharge Current: 100A
- Peak Discharge Current: 120A (5s±2s)
- Dimensions: L 566 x W 402 x H135 mm
- Weight: 47Kg
BMS Characteristics:
- Primary Charging Protection: (Current: 80A) (Delay Time:1000ms)
- Secondary Charging Protection: (Current: 100A) (Delay Time:500ms)
- Primary Discharging Protection: (Current: 110A) (Delay Time: 5s±2s)
- Secondary Discharging Protection: (Current: 120A) (Delay Time: 5s±2s)
- Over Charge Voltage Protection: (Voltage: 58.4V) (Delay Time:500ms)
- Over Discharge Voltage Protection: (Voltage: 43.2V) (Delay Time:500ms)
- Temperature Protection: (Temperature: ≥95°C) (Recover: ≤85°C)
- Communication Port: Major RS485,CAN/Dryport
What’s in the box:
- 1 x SVOLT CONDERENERGY 51.2V 106Ah A-Grade Lithium Battery
- 1 x Red (Positive) Battery Cable
- 1 x Black (Negative) Battery Cable
- 1 x Ethernet cable
- 1 x Manual

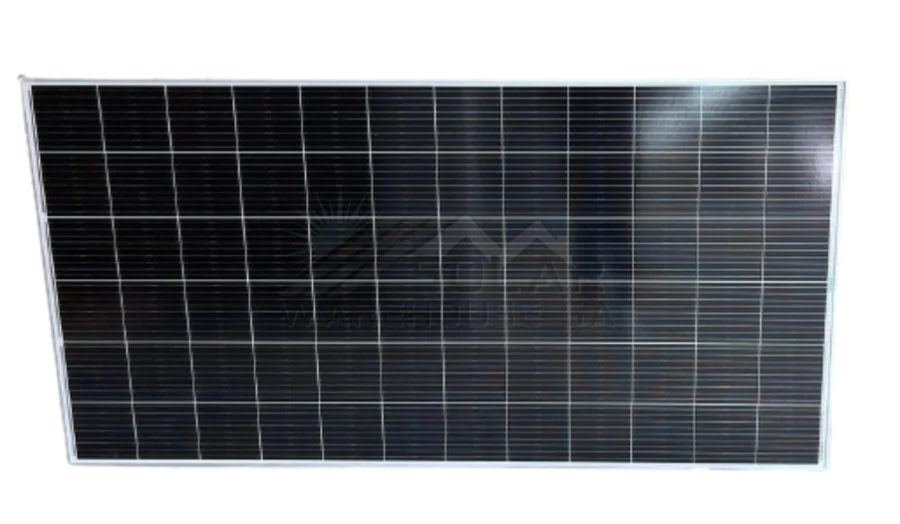

Toyo 450W Mono American Solar Panel X 10
Description:
– 450W Mono-crystalline PV panel.
– A-grade mono-crystalline solar cells.
– Certifications include: German (TUV) certified, CQC, and CE
Features:
– Maximum power (Pmax): 450W
– Maximum power voltage (Vmp): 36.0V
– Maximum power current (Imp): 12.5A
– Open circuit voltage (Voc): 43.20V
– Short circuit current (Isc): 13.13A
– Maximum series fuse rating: 20A
– Maximum system voltage: 1500V
please note couriers for solar panels are at your own risk.
Combo includes:
- 1x SVOLT CONDERENERGY 51.2V 106Ah 5.42 kWh A-Grade Lithium Battery (5 Years Warranty)
- 1x 48V 8.5 KVA 3000W MPPT 80A INVERTER PURE SINE WAVE -Fivestar (1 Year Repair Warranty)
- 10x Toyo 450W Mono American Solar Panels
Warranties:
All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at void.
